| Tool Time | ||||

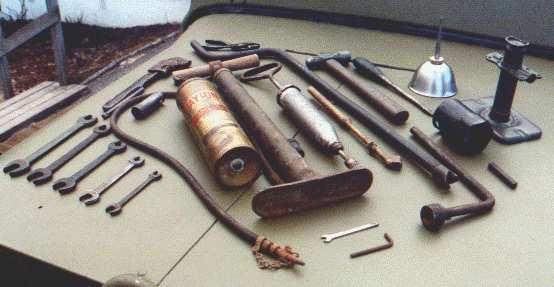

| VEHICULAR TOOLS FURNISHED WITH EACH 1/4 TON MB / GPW | ||||
| PART NAME |
Quantity |
Description | FORD PN | WILLYS PN |

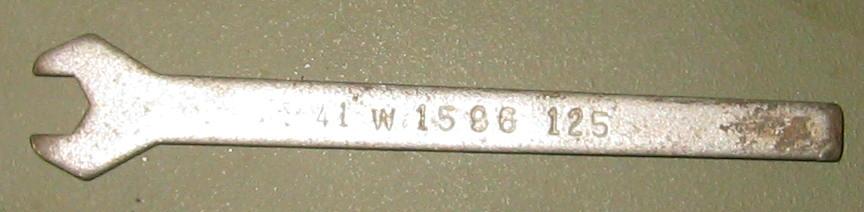

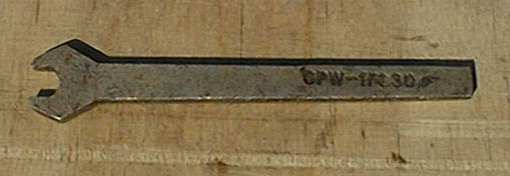

| Wrench-Hydraulic brake-bleeder screw | 1 | # 41W1596-125 (17/64") | GPW 17030 | A-5130 |
| Wheel hub puller | 1 | # 41-P-2962-7 | GPW 17090 | A-1339 |

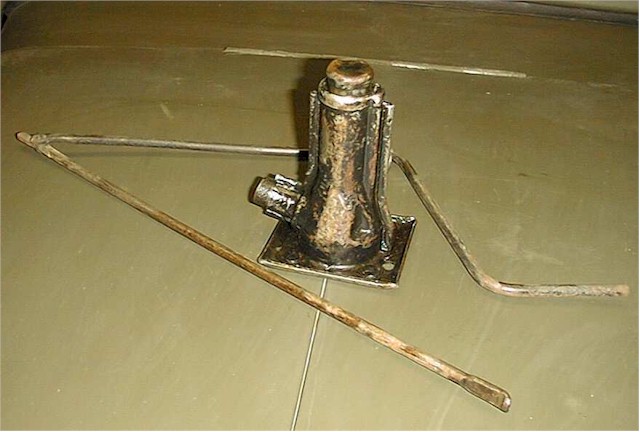

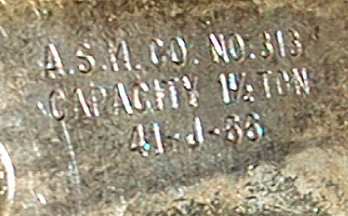

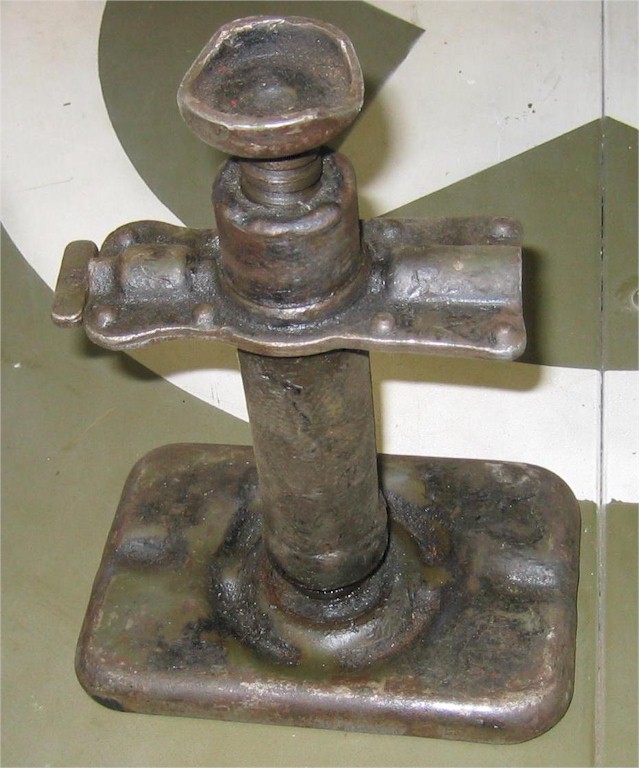

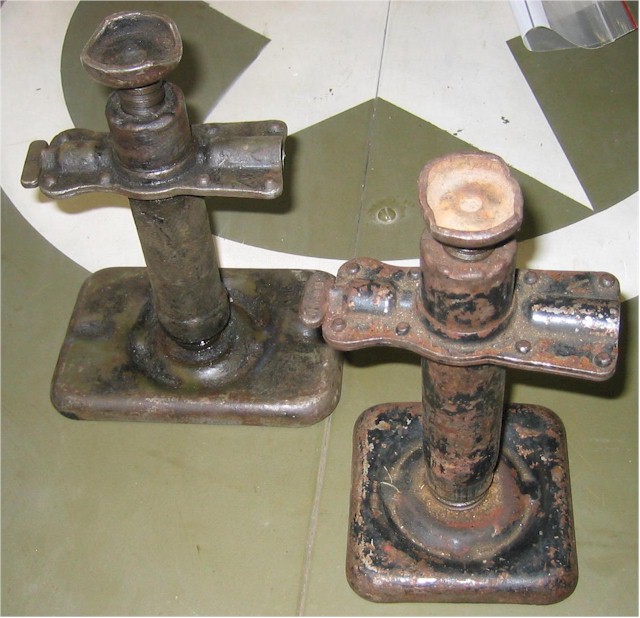

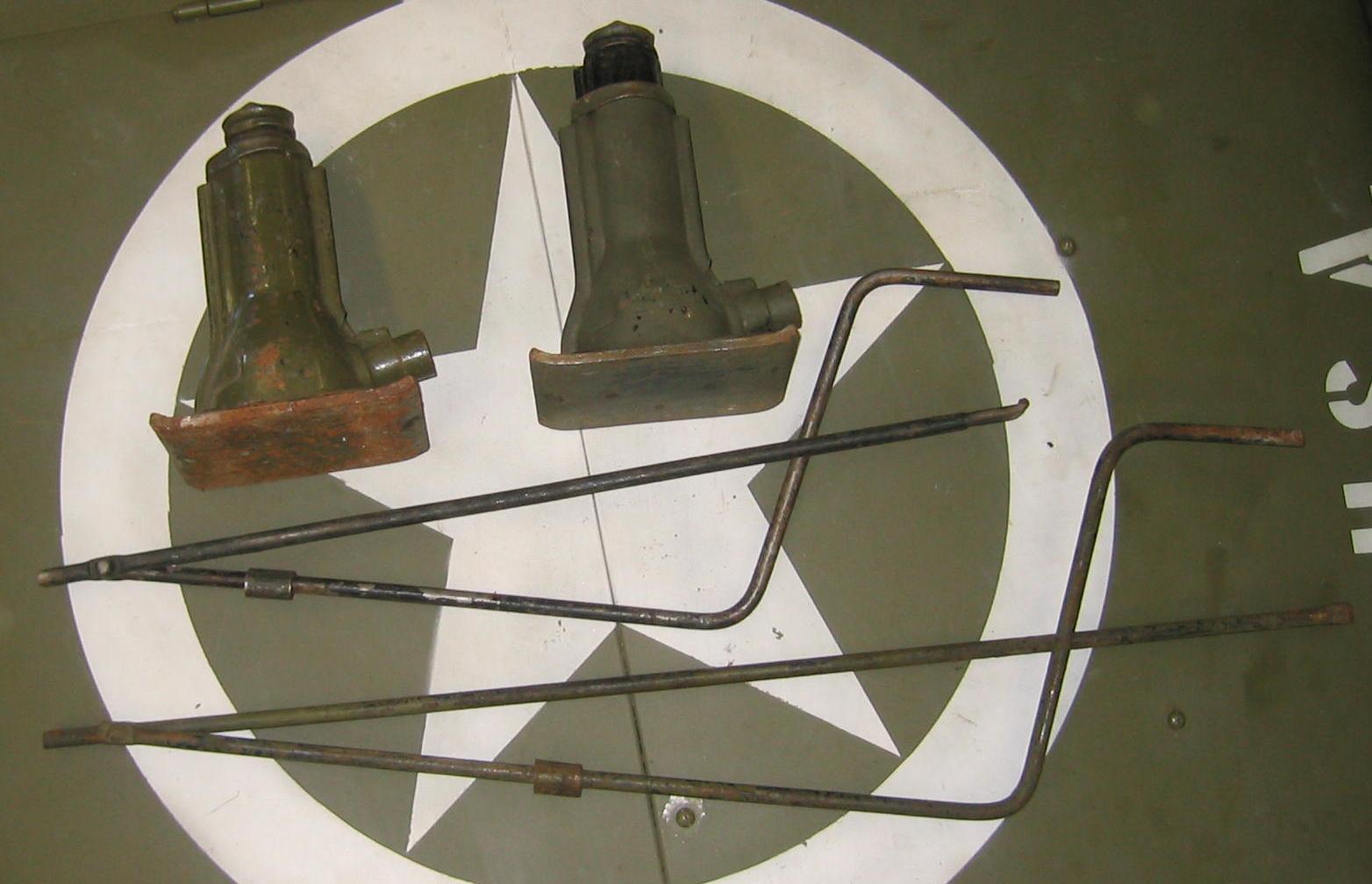

| Jack-screw type (use
handle A-348) Jack -Late type.
Model and type combination is not yet sure. Please mail any information to Frank |
1 | 41-J-66 stamping | GPW 17080 | A-1240 |
| Starting crank | 1 | Hand crank | GPW 17036 | A-289 |

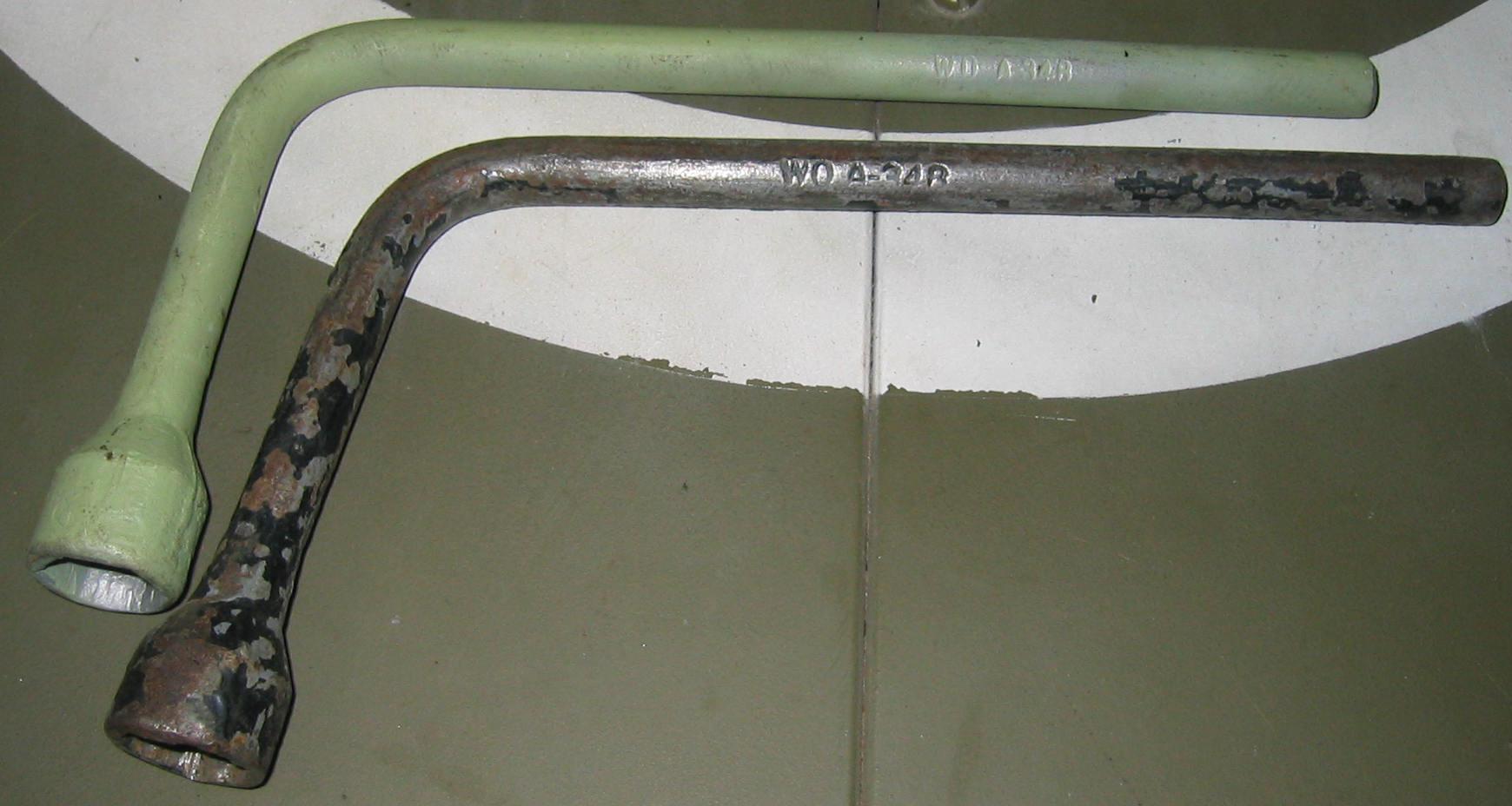

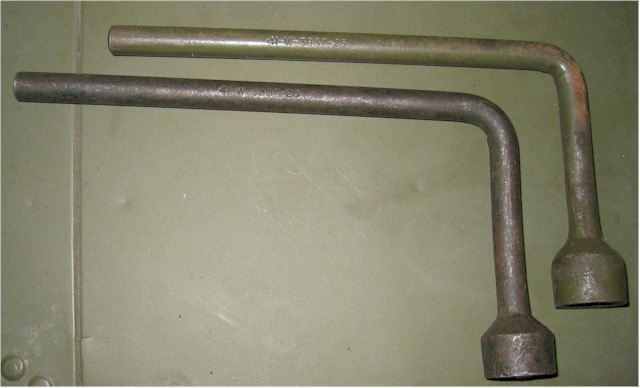

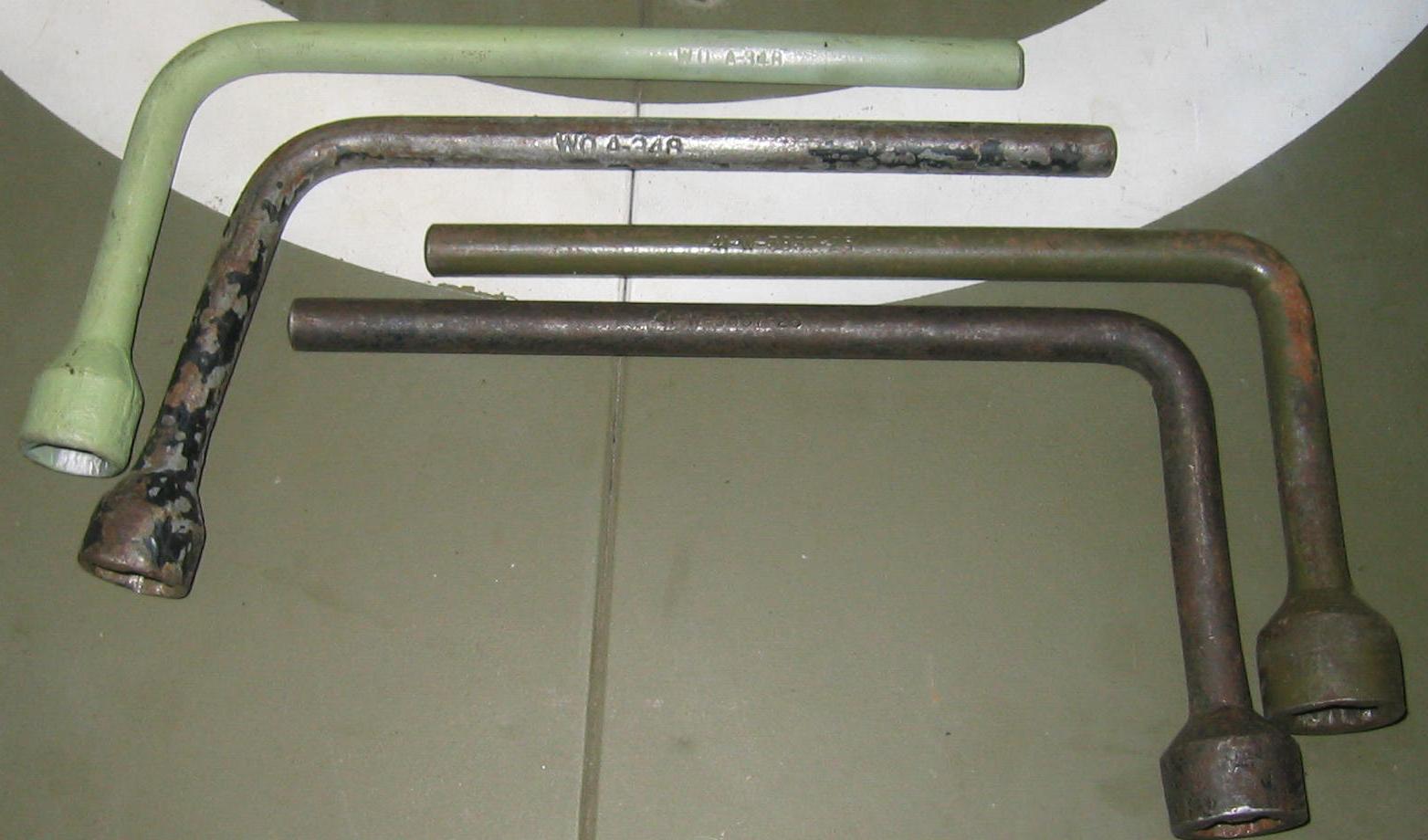

| Lug nut Socket wrench | 1 | # 24832 Img2 Img3 | GPW 17035 | A-348 |

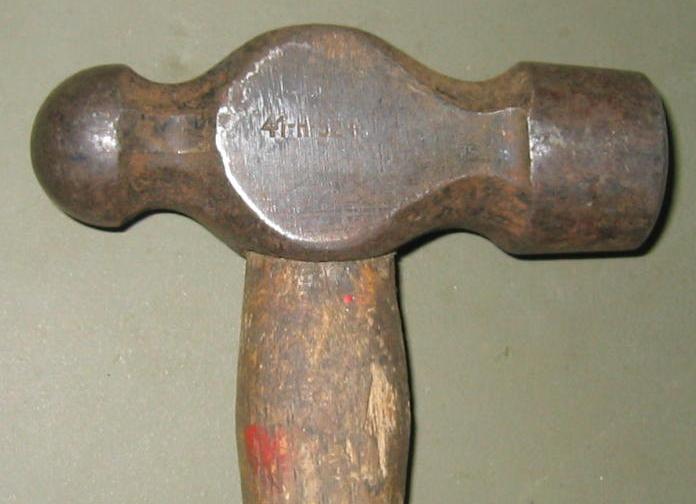

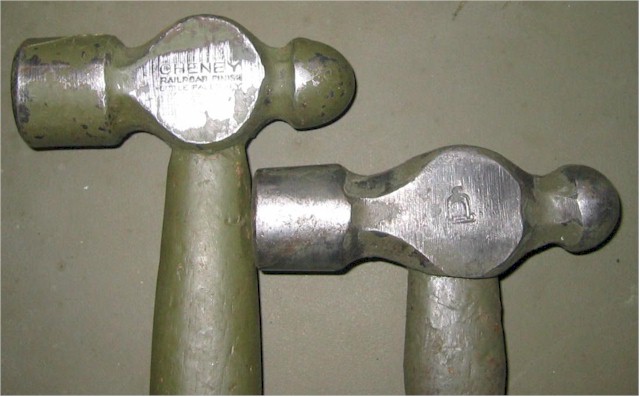

| Hammer-ball pen 16 oz. | 1 | # 41-H-523 Img2 | GP 17042 | A-373 |

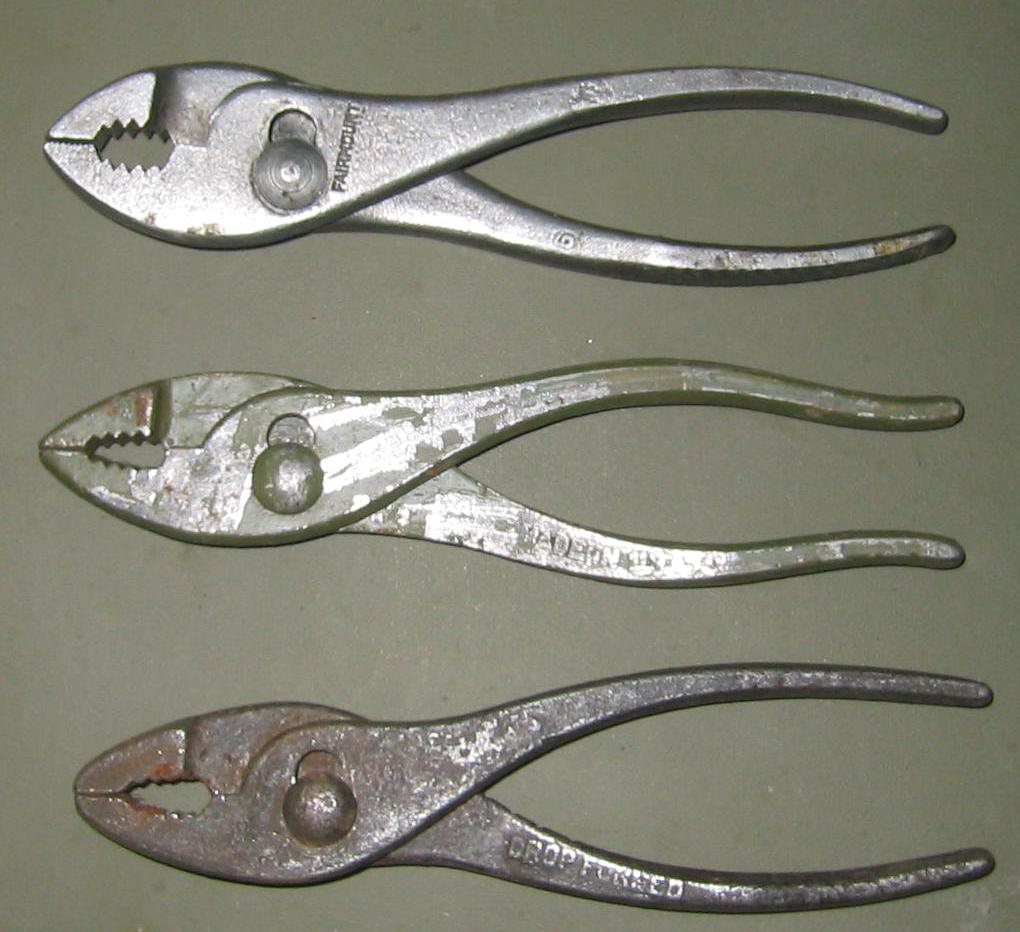

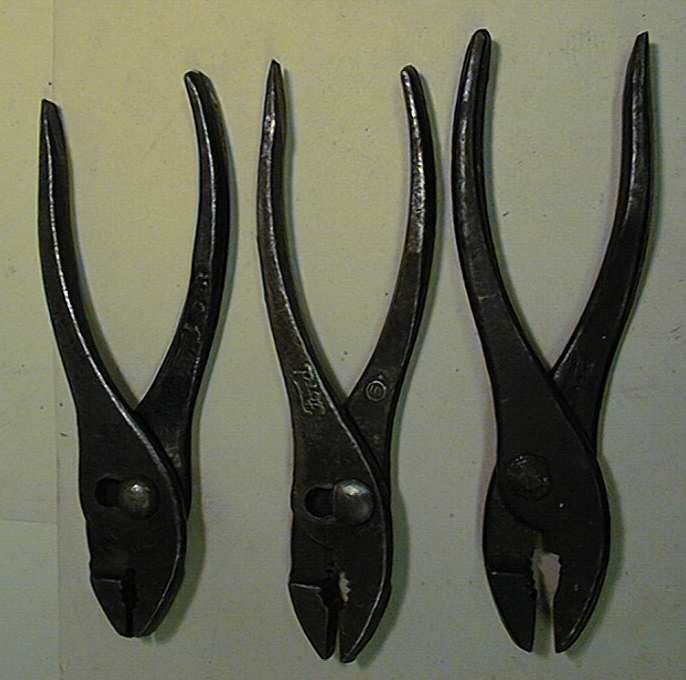

| Pliers 6" | 1 | # 41-P-1650 | GP 17028 | A-374 |

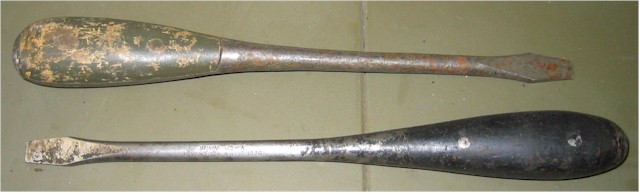

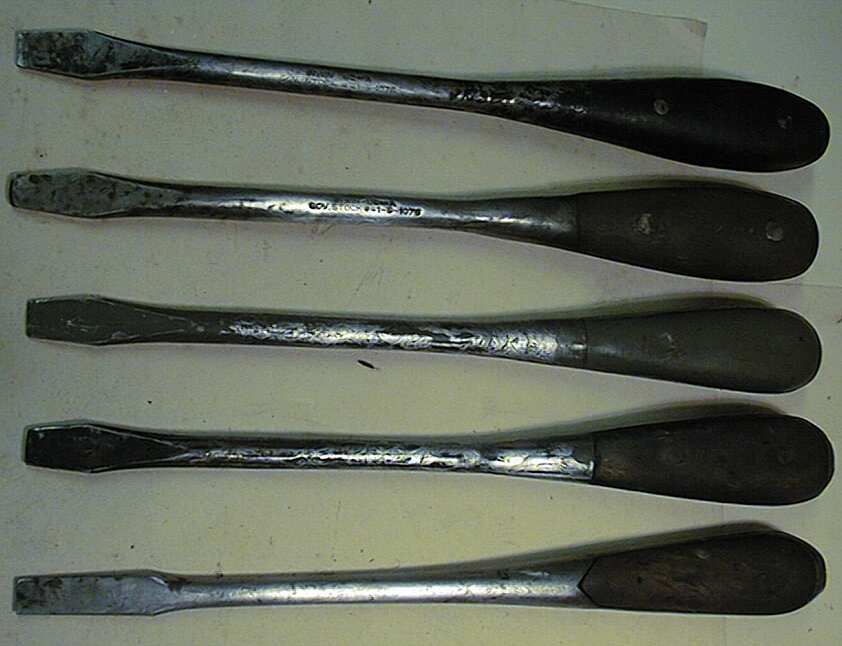

| Screw driver 6" | 1 | # 41-S-1076 | GP 17020 | A-375 |

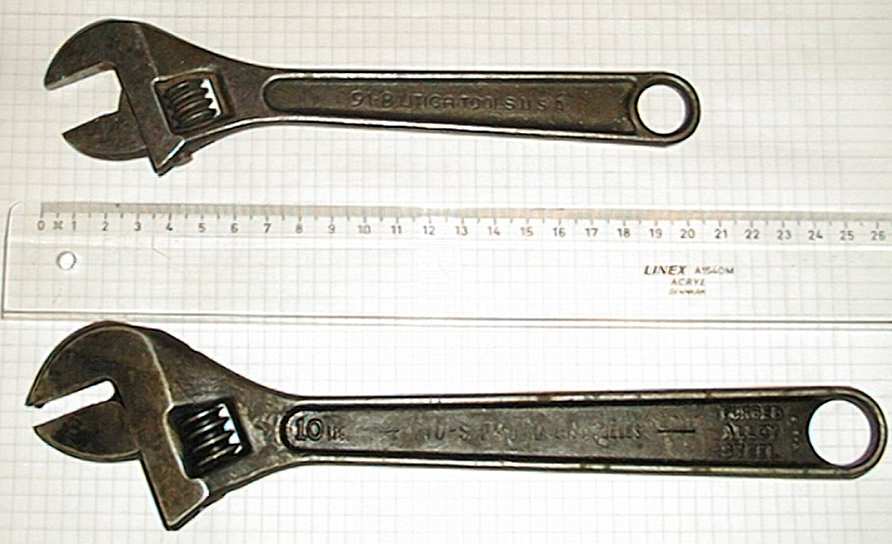

| Cresent Wrench Adjustable 8" | 1 | # 41-W-486 | GP 17023 | A-376 |

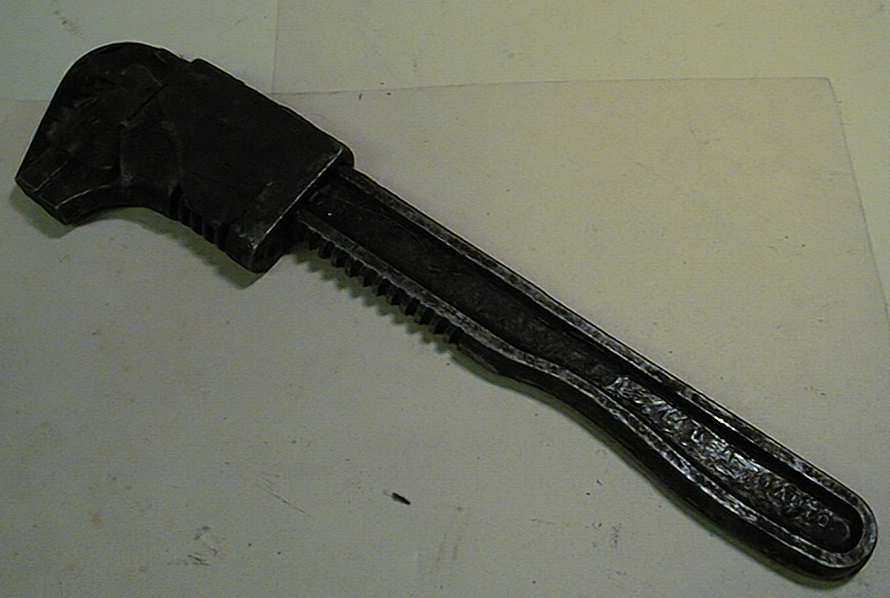

| Adjustable wrench 11" | 1 | # 41-W-448 | GP 17021 | A-377 |

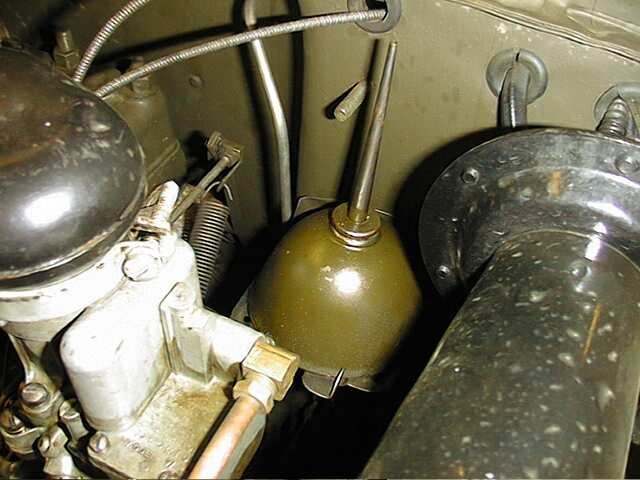

| Oil can 1/2 Pt | 1 | 13-O-1530 | GP 17038 | A-379 |

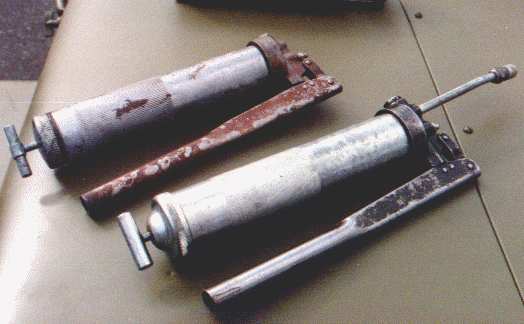

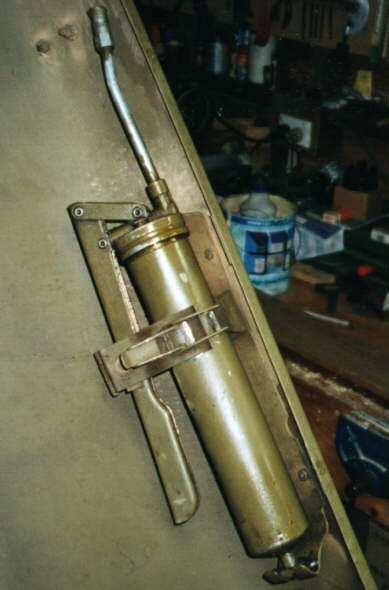

| Grease gun-Hydraulic hand type | 1 | #41-G Alemite | GP 17125 | A-213 |

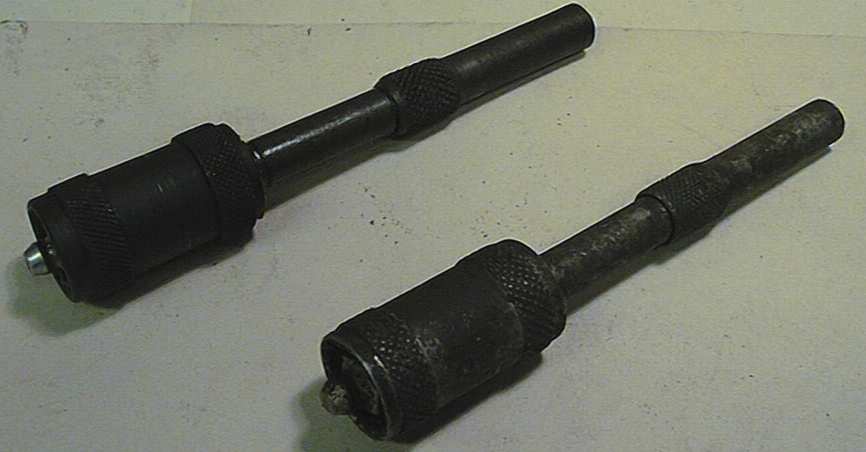

| Grease gun push type adapter | 1 | Alemite No 6517 | GP 17126 | A-11765 |

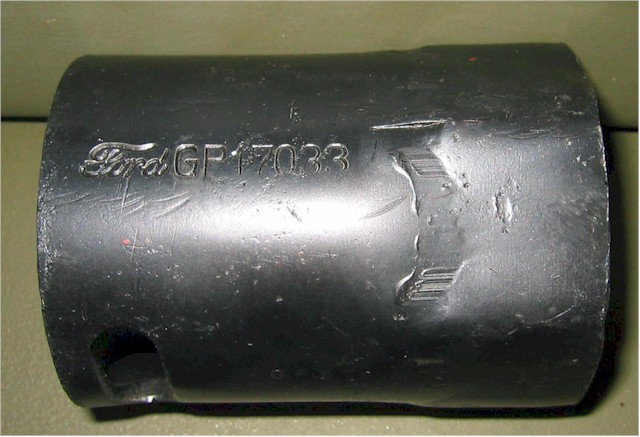

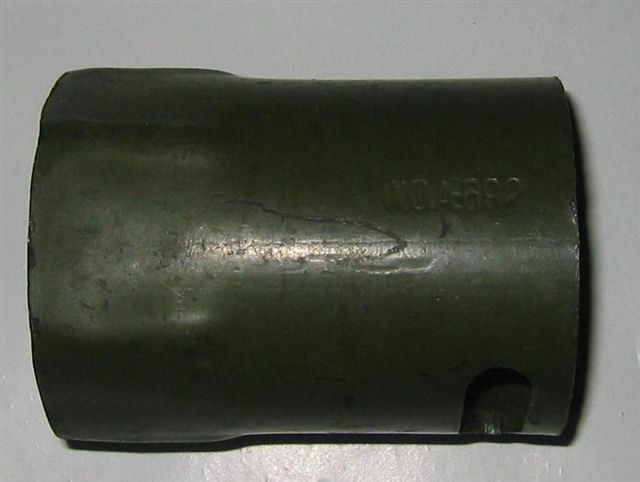

| Wheel hub wrench (painted) | 1 | Hub wrench | GP 17033 | A-692 |

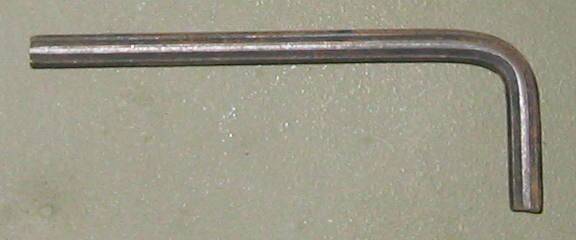

| Fluted socket head screw wrench | 1 | Fluted wrench | GPW 17091 | A-1492 |

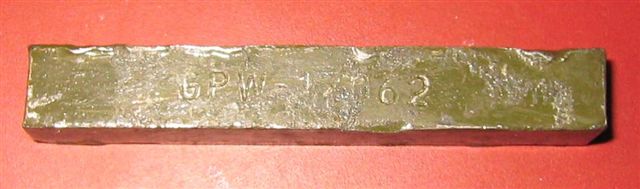

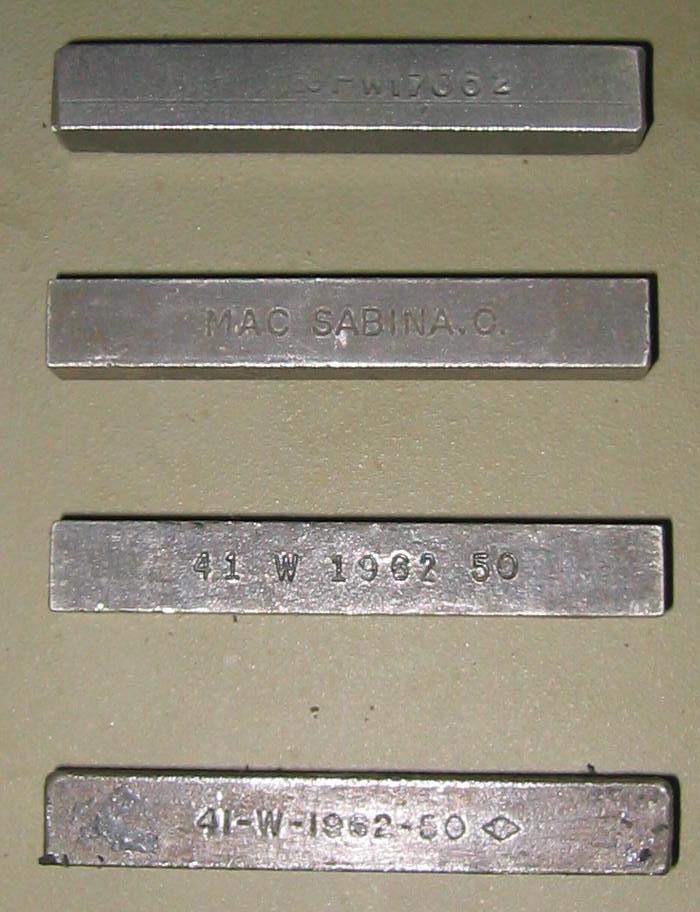

| Drain plug wrench | 1 | Drain plug tool Img2 | GPW 17062 | A-1100 |

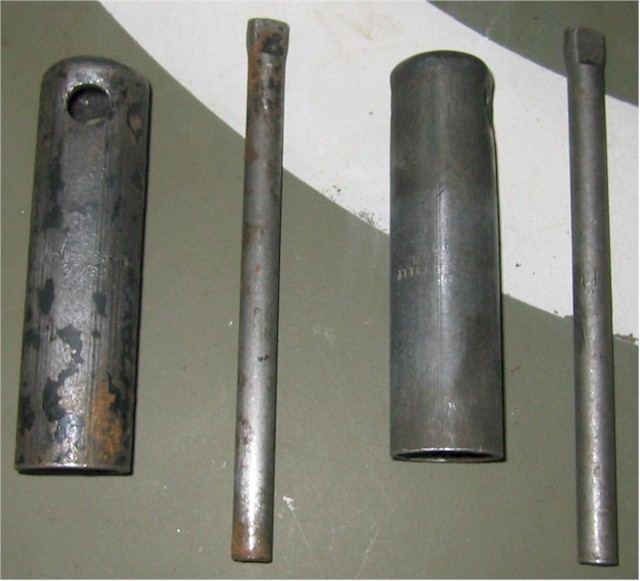

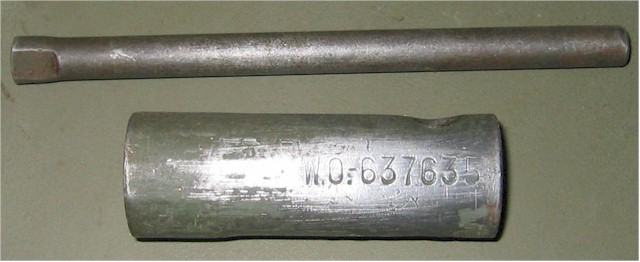

| Spark plug socket handle | 1 | Spark plug wrench Img2 | GPW 17011A | 306715 |
| Spark plug socket wrench | 1 | GPW 17017A | 637635 | |

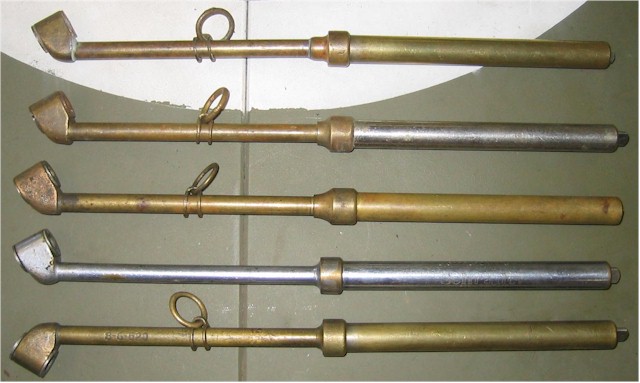

| Tire pressure gauge | 1 | Schraders No 7188-B Img2 | 8-G-615 | A-6855 |

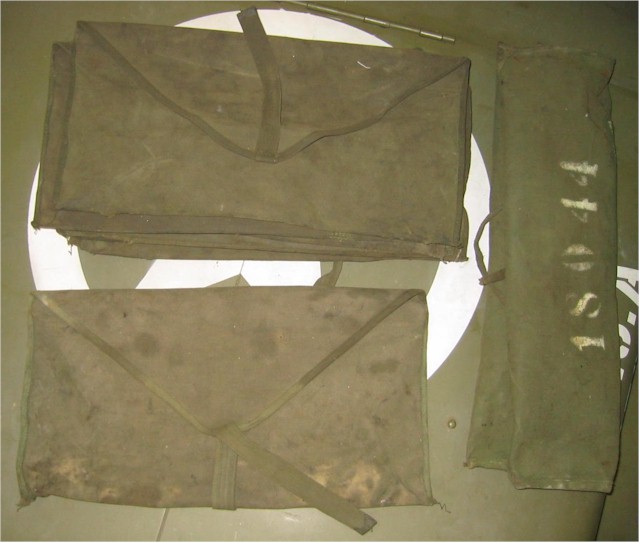

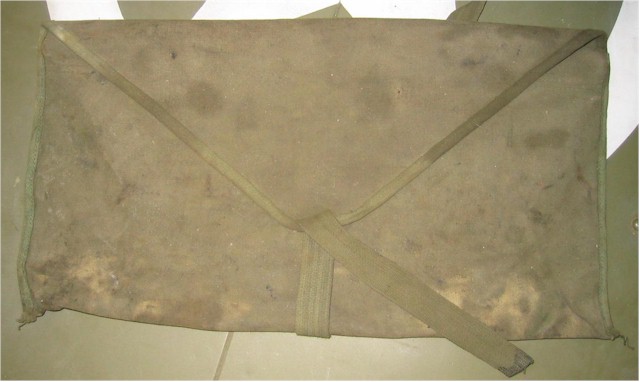

| Tool bag | 1 | #41-B-15 Img2 | GPW 17005 | A-372 |

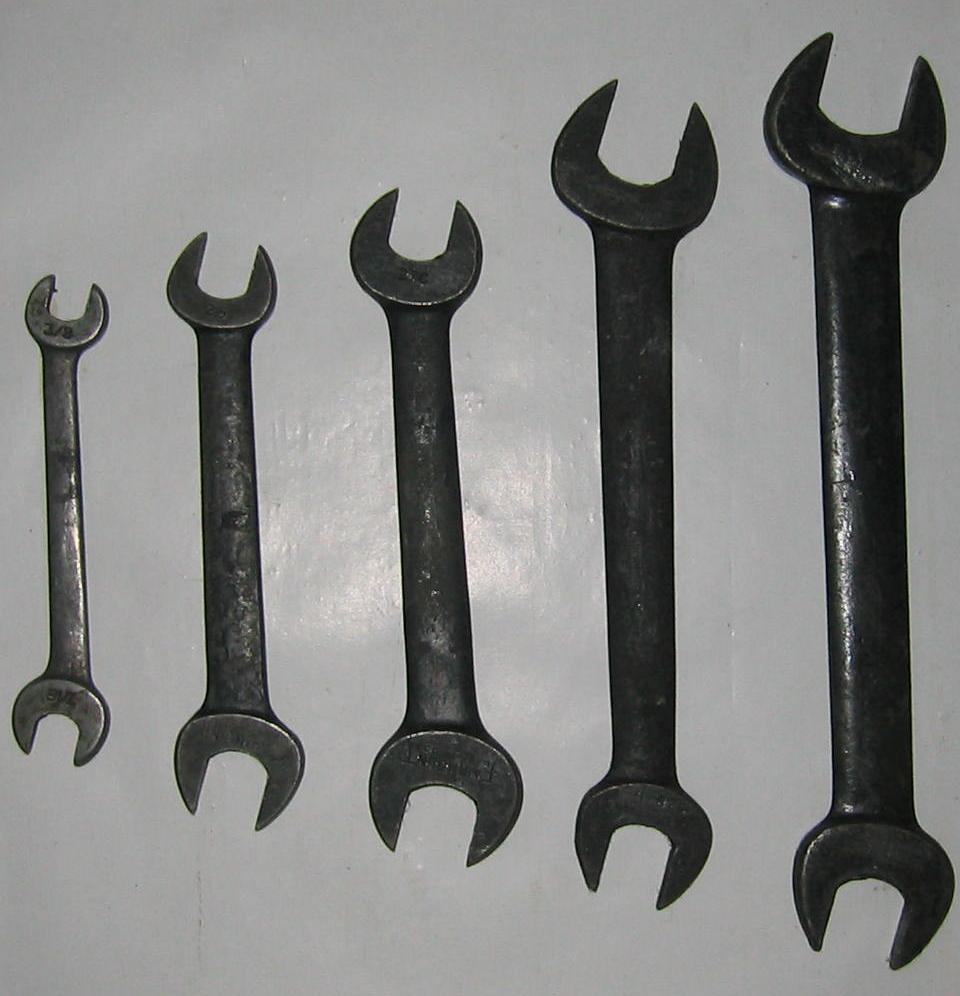

| Wrench 5 ea 15 Degree angle-double head open end chrome alloy wrenches | 1 | A-378 | ||
| Wrench # 723 3/8 -7/16 | 1 | # 41-W-991 | GP 17043 | A-596 |
| Wrench # 25 1/2-19/32 | 1 | # 41-W-1003 | GP 17044 | A-597 |
| Wrench # 27 9/16-11/16 | 1 | # 41-W-1005-5 | GP 17045 | A-598 |
| Wrench # 28S 5/8-25-32 | 1 | # 41-W-1008-10 | GP 17046 | A-599 |
| Wrench # 731A 3/4-7/8 | 1 | # 41-W-1012-5 | GP 17047 | A-600 |

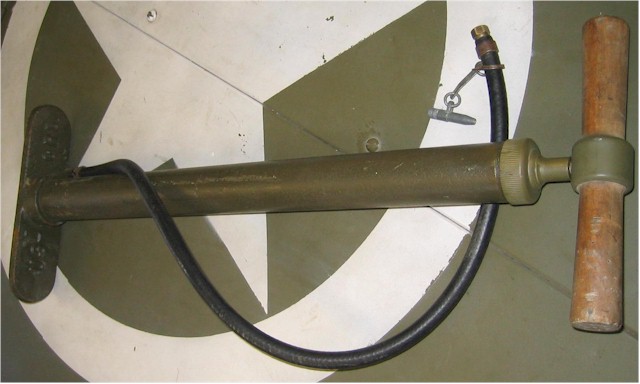

| Tire pump (no chain) | *1 | up to MB 193040 | A-6351 | |
| Tire pump (with chain) | *1 | After MB 193040 | 8-P-5000 | A-7511 |
| Other tools of interest | ||||

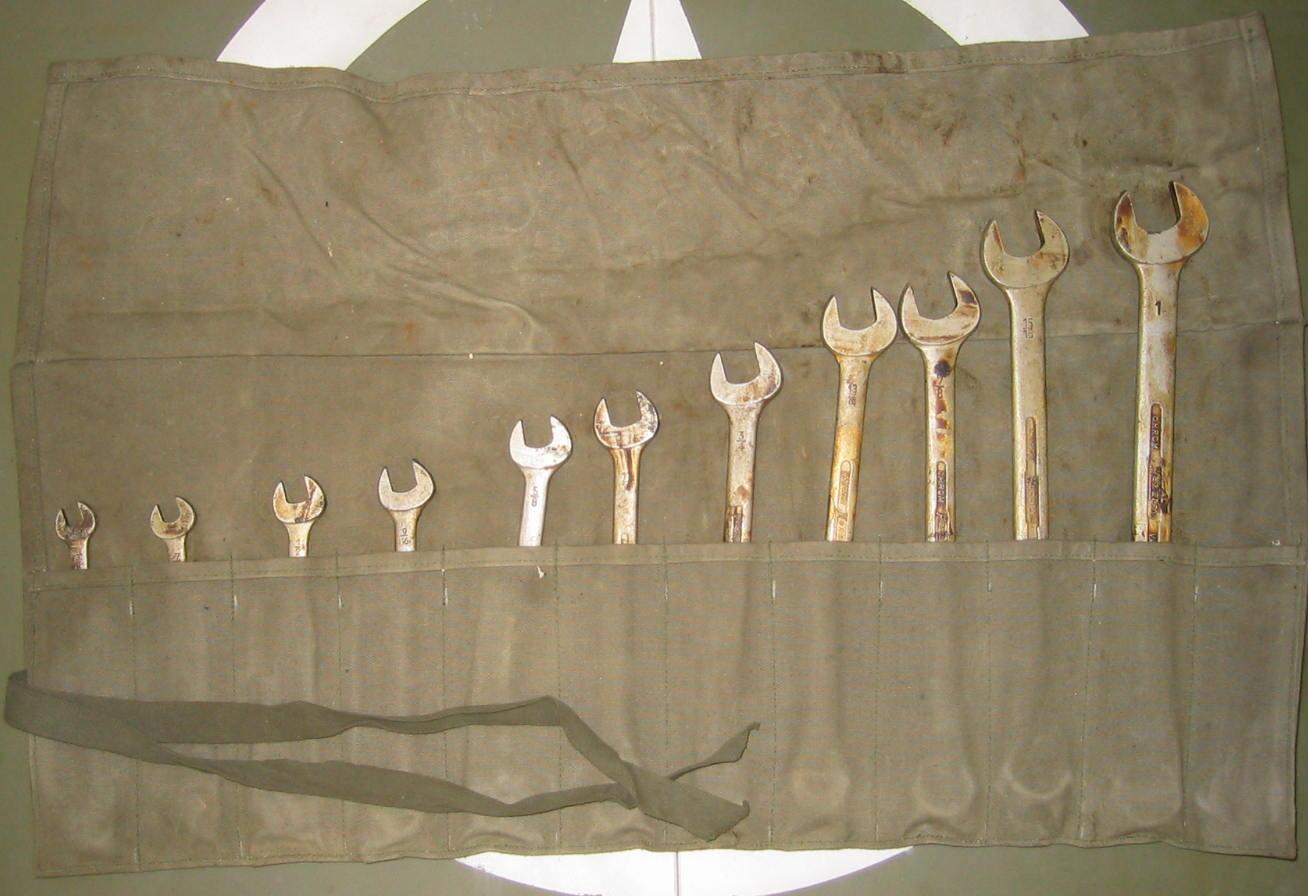

| Nato wrenches | ||||
